Diamante Pro
Cash Recycler

DIAMANTE PRO is CIMA’s high capacity back-office note and coin recycling solution for retailers or venues with higher note and coin requirements. Made up of our AST9000 note recycler + CDS804 FULL coin recycler the DIAMANTE solution has all the functionality you would expect from a complete high capacity back office cash recycling solution.  Driven by our flexible CAOS device operating system, retailers can customize how the system works specifically in their environments.  The AST9000 note recycler utilizes cassettes for recycling.  Each cassette can store up to 3,400 notes of a single denomination making it ideal for stores or environments where cash volumes are extremely high.  The AST9000 is highly flexible with the option of dual denomination recycling cassettes.   Surplus notes are stored in a dedicated deposit only cassette with can be emptied by the CIT operator. The CDS804 FULL coin recycler provides high volume coin functionality and also offer a unique, industry-first, surplus coin management system.  An authorized user can move single or multiple coin denominations of any quantity to a bagging area for removal.

Benefits

  • Customize till floats and denomination mixes specifically for user types

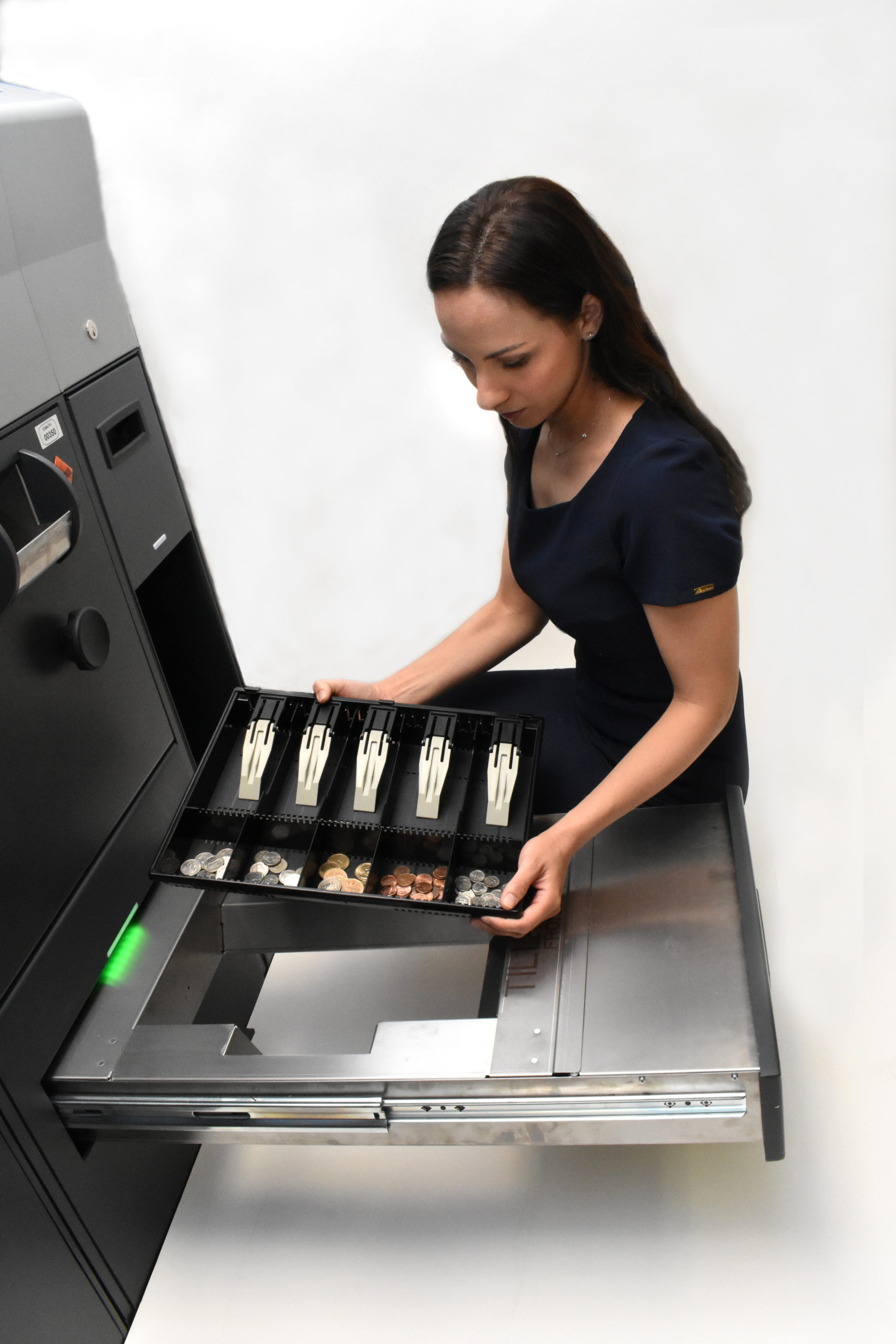

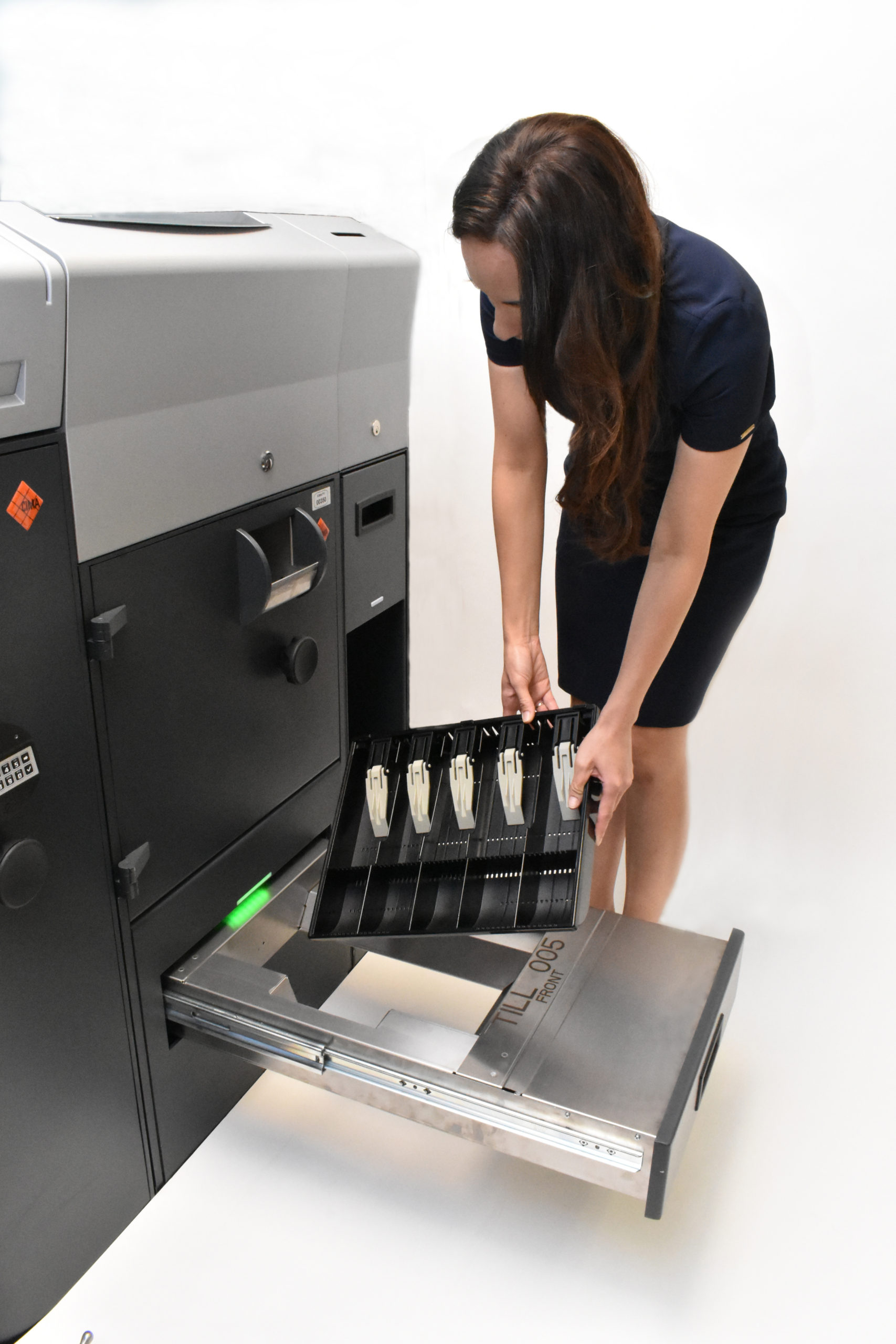

  • Eliminate manual till preparation. Quick and automatic till dispense.

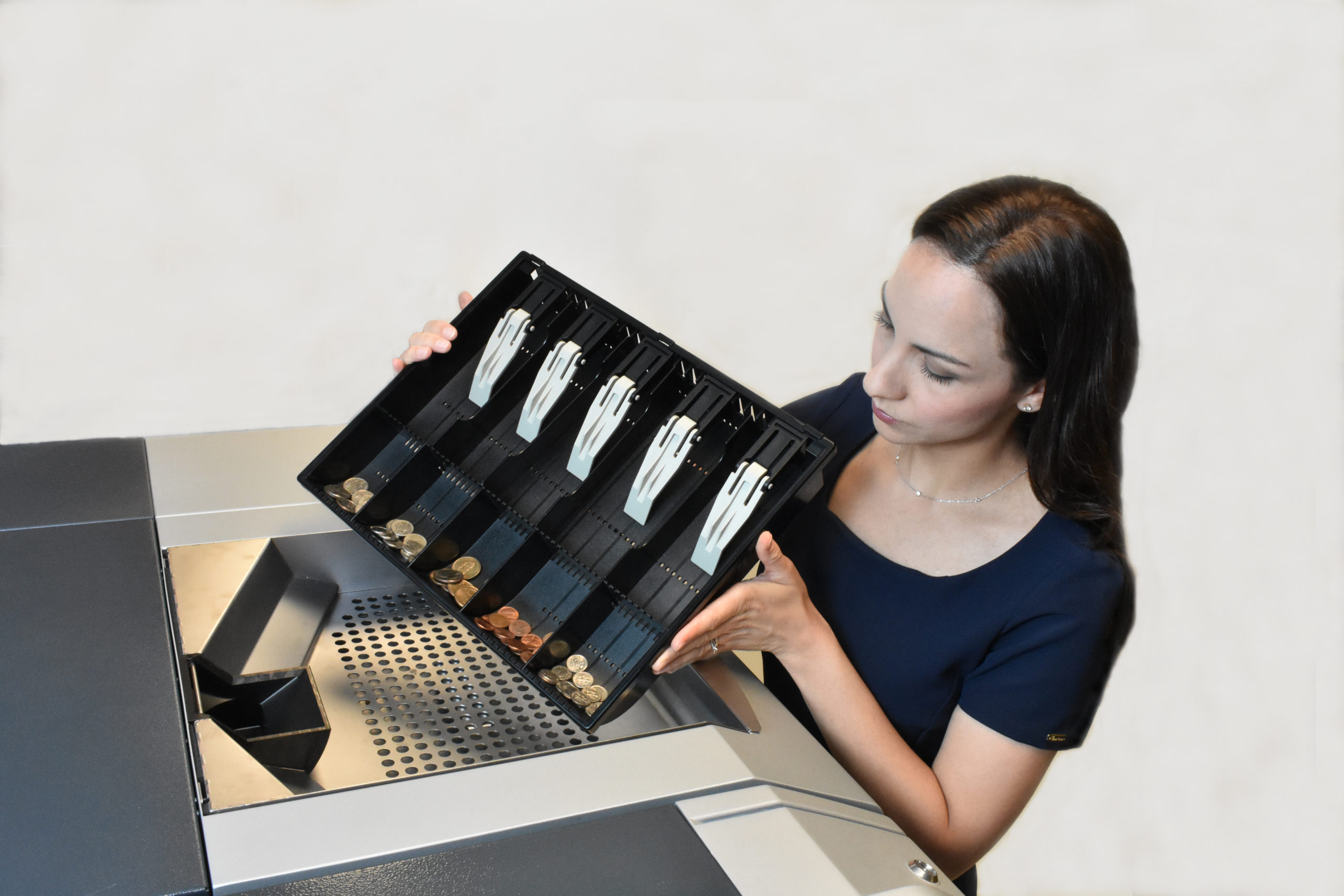

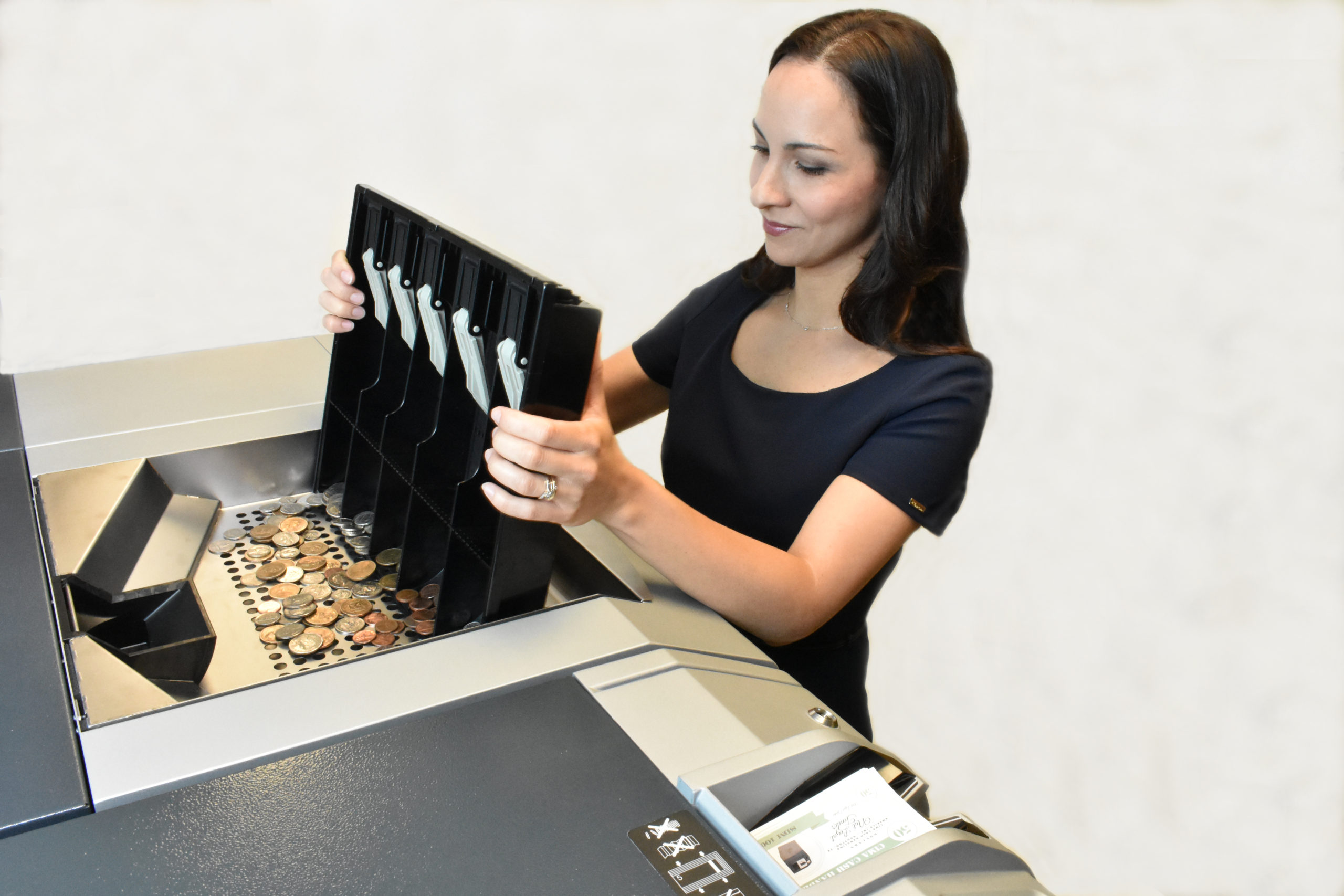

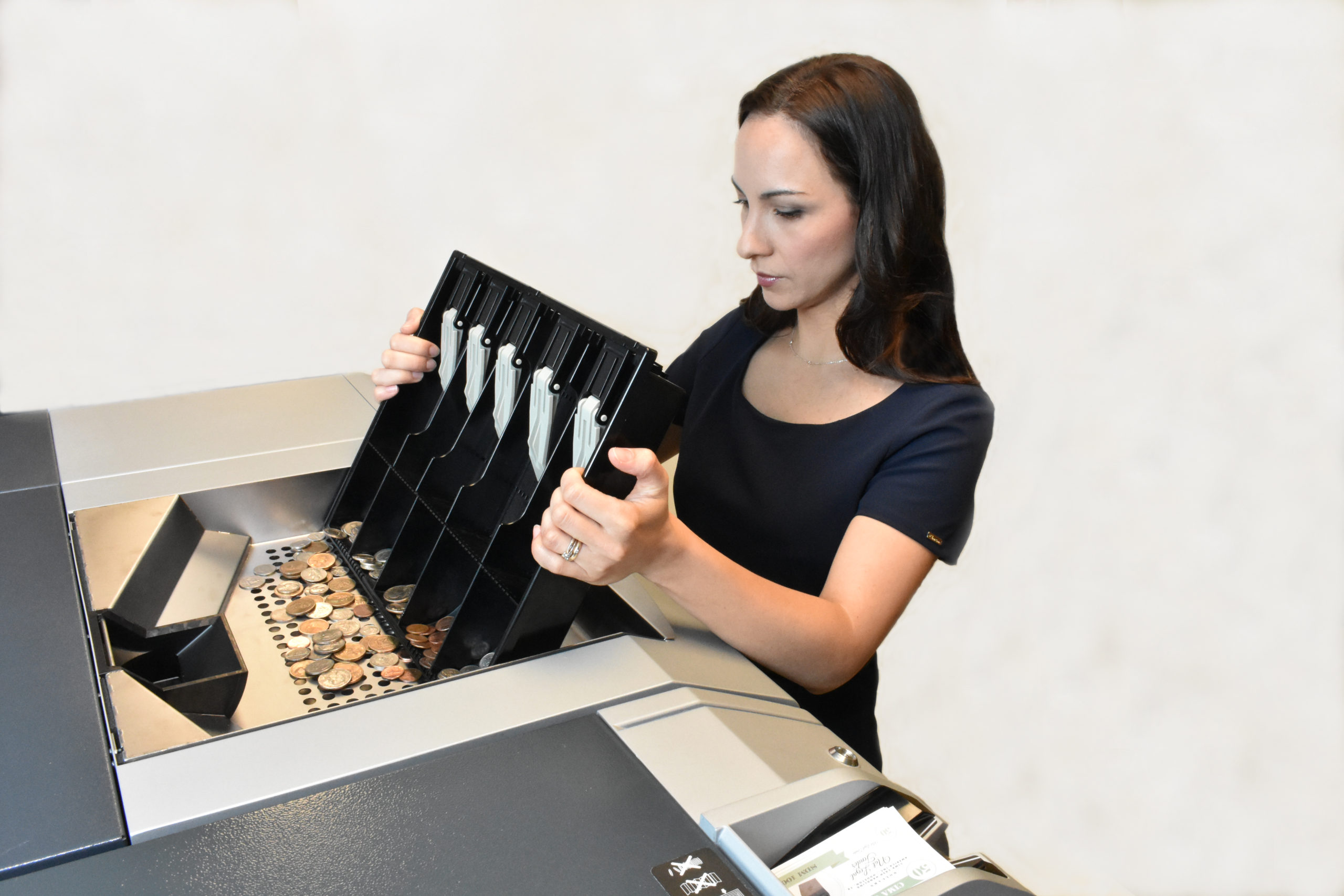

  • Fast and easy end of day cash up process. Simply pour coins into the try and stack notes into the note feeder.
  • Reduce errors by automating the dispense and deposit process
  • Recycling reduces overall store cash requirements
  • Reduce shrink with quick reconciliation to third party applications

AST9000 Technical Specifications

Deposit Speed:

Up to 10 notes / second

Withdrawal Speed:

Up to 10 notes / second

Recycling Technology:

Cash Box / Cassette

Number of Cassettes:

5

Number of Recycling Cassettes:

4

Number of Deposit Only Cassettes:

1

Notes per Single Recycling Cassettes:

3,400*

Notes per Dual Recycling Cassettes:

1,800 / 450*

Notes per Deposit Cassette:

2,800

Connection Type:

Ethernet or USB 2.0 Ports

Bill Validator:

  • Compliant with US Federal Reserve Standards
  • Multi-currency capable

Safe and Security:

UL 291-24H

Weight:

430 kg (947.99 lbs.)

Electrical:

  • Voltage: 100V-240V AC
  • Frequency: 50Hz – 60Hz



CDS804F Technical Specifications

Deposit Speed:

Up to 10 coins / second

Dispense Speed:

Up To 45 coins / second

Deposit Technology:

Hoppers

Total Hoppers:

9

External Coin Overflow System:

8kg (17.6 lbs.)

Total Capacity:

46,000 coins

Coin Validator:

  • CLS
  • Compliant with US Federal Reserve Standards
  • Multi-currency capable

Connection Type:

USB Type B

Safe and Security:

5 mm

Electrical:

  • Voltage: 100V-240V AC
  • Frequency: 50Hz – 60Hz

Width

1,235mm (48.62 in)

Depth

1020mm (40.2 in)

Height

1,250mm (49.21in)
